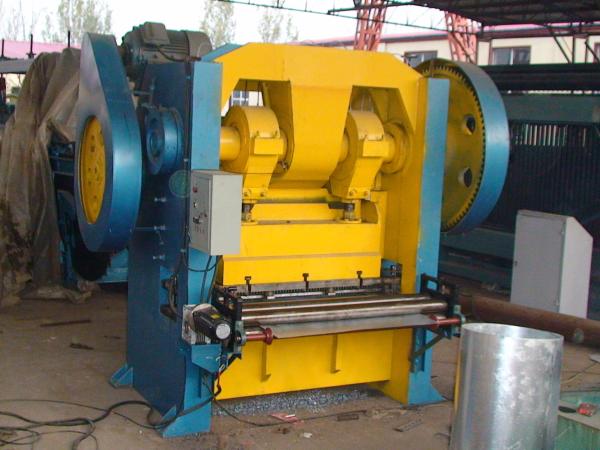

Thickness 2MM Stable and Precise Full Automatic Perforated Metal
Machine
This perforated metal machine is a two-axis or XY cooperative
feeding, and the processing object is flat plate (thin steel
plate,thick steel plate,stainless steel plate, metal or PVC,etc.)
Our advantages:
1. Efficient production efficiency, product consistency is greatly
guaranteed,from hundreds of CNC feeding platform installation and
debugging experience,numerous customer site problem solutions,using
our equipment to produce the products you need,the products are
consistent improve sexuality and eliminate human instability.
Greatly reduce the rework rate.
2. The safety performance of the machine is excellent.The stamping
industry has always been a high-risk industry.During the safety of
the CNC feeding machine,no one directly operates the punching
machine,eliminating the hidden dangers of casualties.Secondly,the
equipment itself comes with various safety protection
mechanisms.Our machine will make you no more safety concerns. In
order to prevent accidental operation and damage the machine,we
have added a stroke overrun protection,which can promptly alert and
handle the problem.Unstable voltage,over current our equipment can
automatically protect components without damage.
Please check the details about the machine:
| Model | DZ31G-80 | DZ31G-125 | DZ31G-160 | DZ31G-200 |
| Nominal Force(KN) | 800 | 1250 | 1600 | 2000 |
| Nominal Stroke(MM) | 2 | 3 | 3 | 3 |
| Slide Stroke(MM) | 30 | 30 | 30 | 30 |
| SPM(MIN) | 160-280 | 160-240 | 160-220 | 150-200 |
| Max Die Height(MM) | 360 | 400 | 400 | 420 |
| Die Height Adjustment(MM) | 50 | 50 | 50 | 50 |
| Boster(F.B*L.R*T)(MM) | 550*980 | 600*1180 | 700*1380 | 800*1550 |
| Boster Opening(F.B*L.R)(MM) | 500*950 | 550*1050 | 600*1250 | 650*1450 |
| Between Columns(MM) | 1000 | 1200 | 1400 | 1600 |
| Motor Power(KW) | 11 | 18.5 | 22 | 30 |
| Air Pressure(MM) | 0.5 | 0.5 | 0.5 | 0.5 |
| Net Weight(KG) | 9000 | 11500 | 15000 | 19000 |
