    100n Tons Aluminum Steel Diamond Expanded Metal Mesh Machine High Speed Making

    Ask Lasest Price
    Brand Name : DIAOZHUO
    Model Number : DZ-6.3T
    Certification : CE ISO9001
    Price : variable
    Payment Terms : L/C, T/T, D/P
    Supply Ability : 6-8 sets per month
    Delivery Time : 20-30 work days
    • Product Details
    • Company Profile

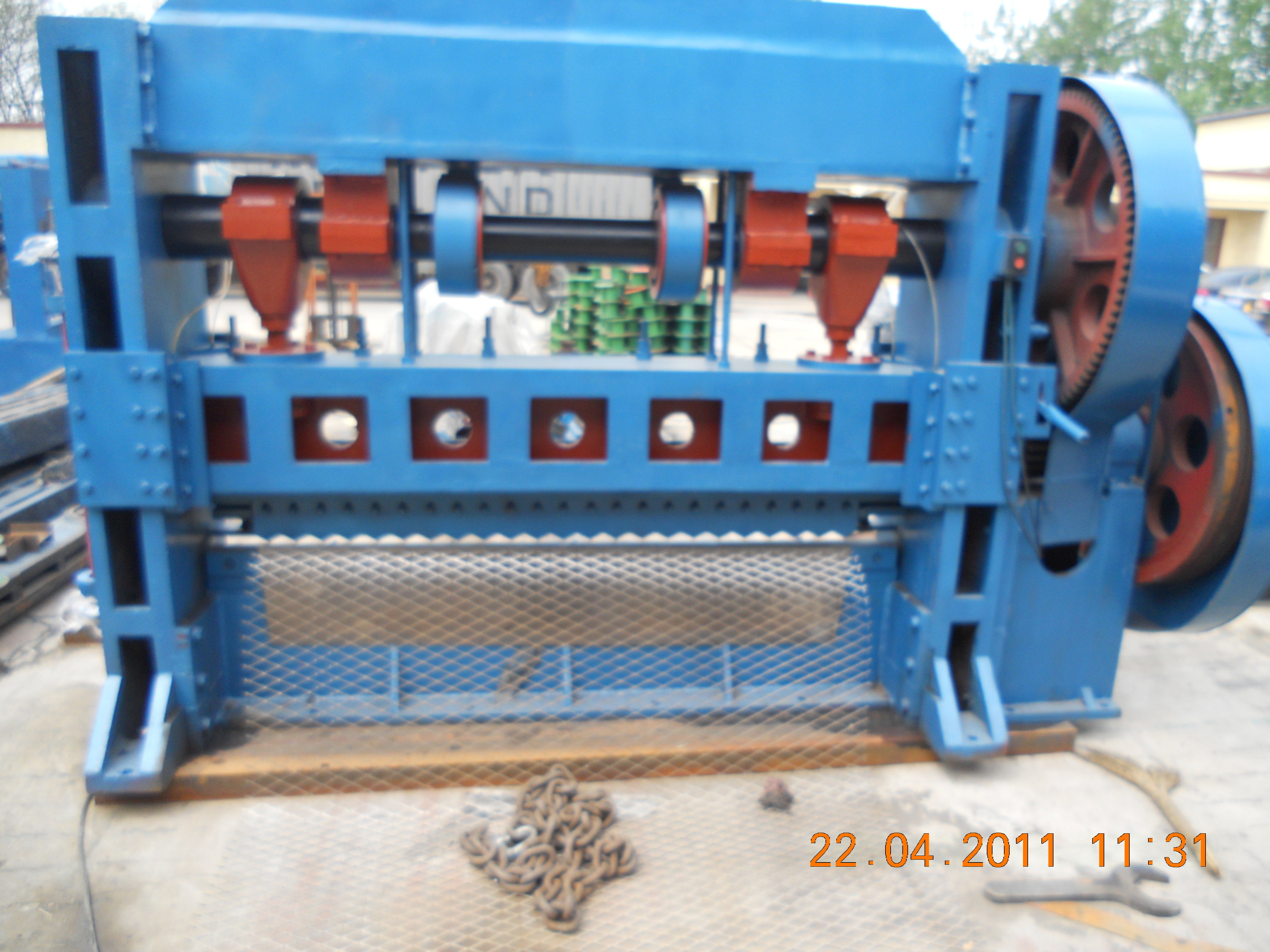

    100n Tons Aluminum Steel Diamond Expanded Metal Mesh Machine High Speed Making


    Description of Barbed wire making machine
    Expanded metal mesh machine, also named expanded machine, expanded metal machine, is widely used to produce expanded metal mesh for construction, fence, hardware, windows, protection etc.
    100n Tons Aluminum Steel Diamond Expanded Metal Mesh Machine High Speed Making
    1. The machine adopts PLC program and text screen, easy to operate.
    2. Raw material can be galvanized steel plate, iron plate, aluminum plate, stainless steel plate etc.
    3. The machine can produce different types of expanded metal mesh by different cutters.
    4. The machine adopts step motor to control steel plate feeding, more accurate.
    5. The finished mesh is in flattened panels.
    6. Pneumatic brake device.
    7. The machine is widely used in construction, hardware, fence, window and door, protection etc.
    8. The finished mesh can be panel or rolls.

    Technical Data of Expanded metal mesh machine

    ModelDP25-16DP25-25DP25-40DP25-63DP25-100DP25-160
    Material
    Thickness(mm)
    0.1-10.1-1.50.1-2.50.5-30.5-50.5-8
    Material
    Max.width(mm)
    10001250150020002000/25002000/2500/3200
    Speed
    (times/min)
    220200110756050
    Feed distance(mm)0-2.20-30-60-60-100-10
    Mesh opening size LWD(mm)≤25≤30≤80≤150≤180≤200
    Motor(kw)5.55.5111118.5/2230
    Weight(T)2.2371113/1518/20/26
    Size(mm)1.1*1.7*21.5*2.1*21.8*3.2*2.13.4*3.4*2.353.4*3.6*2.653.5*3.7*2.65

    100n Tons Aluminum Steel Diamond Expanded Metal Mesh Machine High Speed Making

    1. Steel metal cover for rotating wheels to ensure safety operation.

    2. Alloy cutter mold can be made of Cr12#1 or YG-8 hardened tool steel, life up to one year.

    3. Cast steel base and unit, shock-resistance and working smooth

    4. Central lubrication system to decrease machine wearing out and make maintenance easily.

    5. Pneumatic clutch brake + step motor. Pneumatic clutch brake to stop the machine, more fast

    6. Electric and pneumatic system PLC +Text screen control, easy to operate, one worker is ok

    Other terms:
    1. Price need to confirm by the specification you need.
    2. Payment: 30% T/T in advance, the balance 70% by T/T after check the machine at seller's factory.
    3. Minimum order quantity: 1 set
    4. Certification: ISO 9001 Certificate
    5. Delivery time: 30 days from received your payment in advance.
    6. Country of origin: China
    7. Our guarantee time: 12 months after the equipment is accepted by the buyer, however, the guarantee period is no longer than 18 months after equipment's departure from Xingang port, China.
    8. Installation: we could arrange our engineer install the machine in our factory.
    IV. Contact Information

    100n Tons Aluminum Steel Diamond Expanded Metal Mesh Machine High Speed Making

    FAQ

    Q:Where is your factory located?

    A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
    Q: How many years are your company engaged in the wire mesh machines?
    A: More than 25 years. We have our own technology develop department and testing deparment.
    Q: Can your company send your engineers to my country for machine installation, worker training?
    A: Yes, our engineers went to more than 100 countries before. They are very experienced.
    Q: What's the guarantee time for your machines?
    A: Our guarantee time is 2 years since the machine was installed in your factory.
    Q: Can you export and supply the customs clearance documents we need?
    A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.
